NSS10F14X5/8
Call for Pricing
Available For Order
Sign in or Create an Account to view current inventory
Part Number
NSS10F14X5/8
Manufacturer Part Number
1215680
Manufacturer
BROWNING

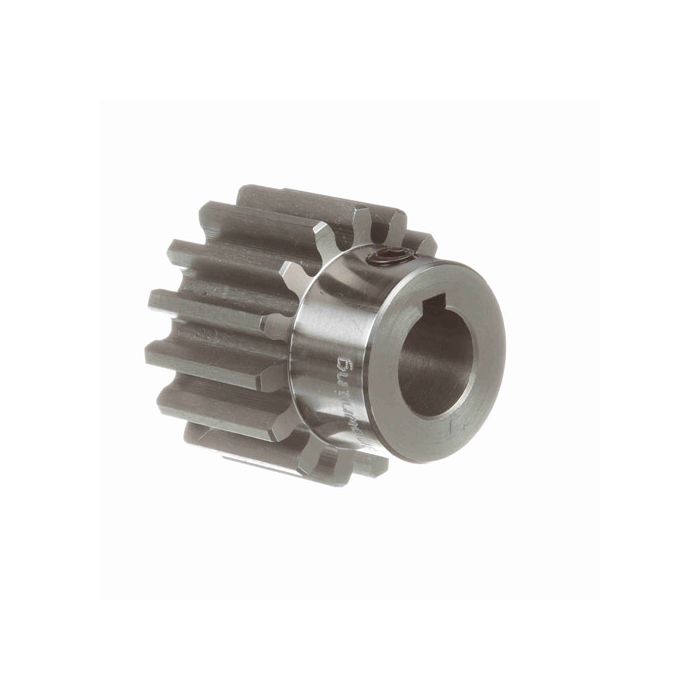

10 DP Spur Gear 14-1/2 Degree Pressure Angle Finished Bore
| Part Number | NSS10F14X5/8 |
|---|---|
| Weight | 0.460000 |
| Manufacturer | BROWNING |
| UM | EA |
| UPC | 662289267446 |
| Face Width (inch) | 1.000 |
| Bore (inch) | 5/8 |
| Bore Type | Fixed Bore |
| Material | Steel |
| Number of Teeth | 14 |
| OD (inch) | 1.600 |
| Pitch | 10 |
| Pitch Diameter | 1.400 |
| Pressure Angle | 14-1/2 |
| Type | Spur |
| Product Description | 10 DP Spur Gear 14-1/2 Degree Pressure Angle Finished Bore |
