NSS12F21X3/4
Call for Pricing
Available For Order
Sign in or Create an Account to view current inventory
Part Number
NSS12F21X3/4
Manufacturer Part Number
1215581
Manufacturer
BROWNING

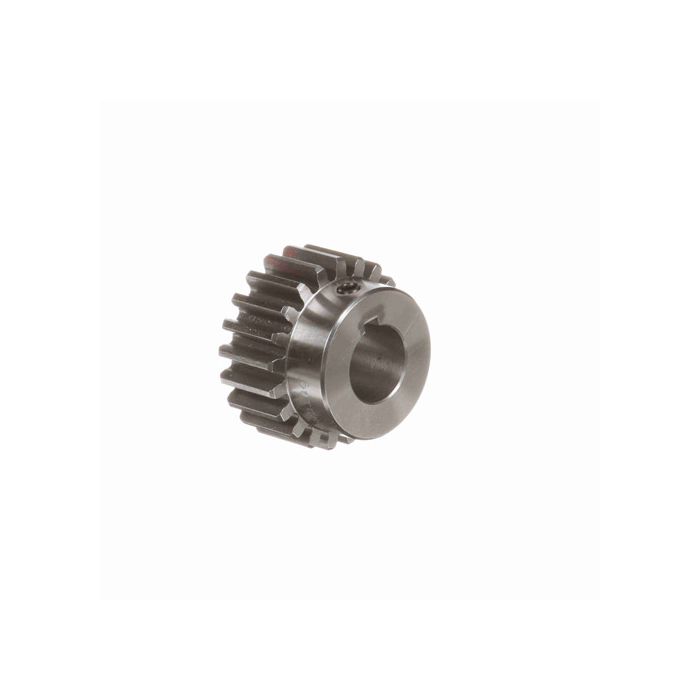

12 DP Spur Gear 14-1/2 Degree Pressure Angle Finished Bore
| Part Number | NSS12F21X3/4 |
|---|---|
| Weight | 0.620000 |
| Manufacturer | BROWNING |
| UM | EA |
| UPC | 662289187317 |
| Face Width (inch) | 0.750 |
| Bore (inch) | 3/4 |
| Bore Type | Fixed Bore |
| Material | Steel |
| Number of Teeth | 21 |
| OD (inch) | 1.910 |
| Pitch | 12 |
| Pitch Diameter | 1.750 |
| Pressure Angle | 14-1/2 |
| Type | Spur |
| Product Description | 12 DP Spur Gear 14-1/2 Degree Pressure Angle Finished Bore |
