NSS12F24X1
Call for Pricing
Available For Order
Sign in or Create an Account to view current inventory
Part Number
NSS12F24X1
Manufacturer Part Number
1215656
Manufacturer
BROWNING

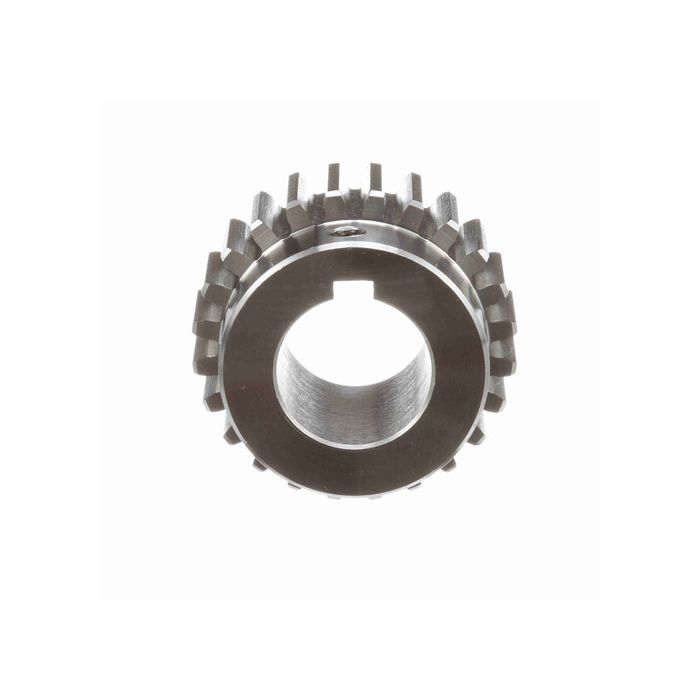

12 DP Spur Gear 14-1/2 Degree Pressure Angle Finished Bore
| Part Number | NSS12F24X1 |
|---|---|
| Weight | 0.700000 |
| Manufacturer | BROWNING |
| UM | EA |
| UPC | 662289157365 |
| Face Width (inch) | 0.750 |
| Bore (inch) | 1 |
| Bore Type | Fixed Bore |
| Material | Steel |
| Number of Teeth | 24 |
| OD (inch) | 2.160 |
| Pitch | 12 |
| Pitch Diameter | 2.000 |
| Pressure Angle | 14-1/2 |
| Type | Spur |
| Product Description | 12 DP Spur Gear 14-1/2 Degree Pressure Angle Finished Bore |
