NSS16F24X3/4
Call for Pricing
Available For Order
Sign in or Create an Account to view current inventory
Part Number
NSS16F24X3/4
Manufacturer Part Number
1215367
Manufacturer
BROWNING

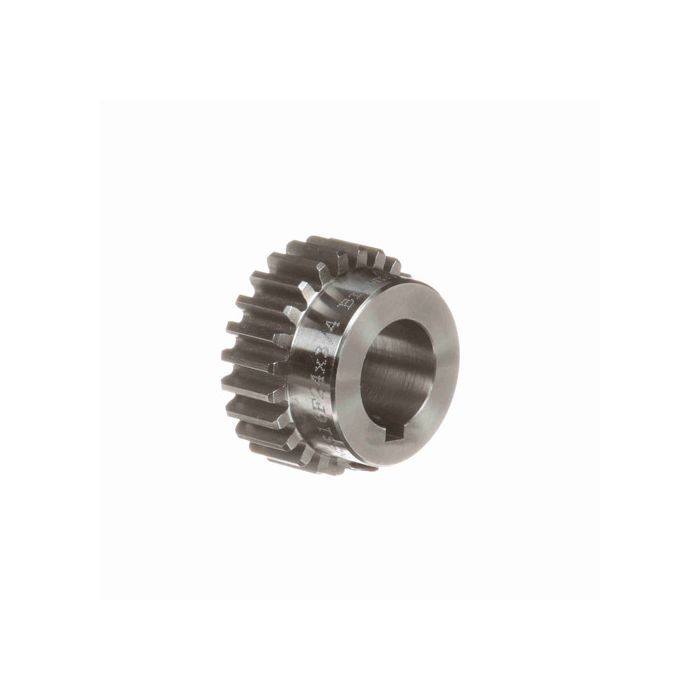

16 DP Spur Gear 14-1/2 Degree Pressure Angle Finished Bore
| Part Number | NSS16F24X3/4 |
|---|---|
| Weight | 0.300000 |
| Manufacturer | BROWNING |
| UM | EA |
| UPC | 662289217076 |
| Face Width (inch) | 0.500 |
| Bore (inch) | 3/4 |
| Bore Type | Fixed Bore |
| Material | Steel |
| Number of Teeth | 24 |
| OD (inch) | 1.620 |
| Pitch | 16 |
| Pitch Diameter | 1.500 |
| Pressure Angle | 14-1/2 |
| Type | Spur |
| Product Description | 16 DP Spur Gear 14-1/2 Degree Pressure Angle Finished Bore |
