NSS5P35
Call for Pricing
Available For Order
Sign in or Create an Account to view current inventory
Part Number
NSS5P35
Manufacturer Part Number
1214519
Manufacturer
BROWNING

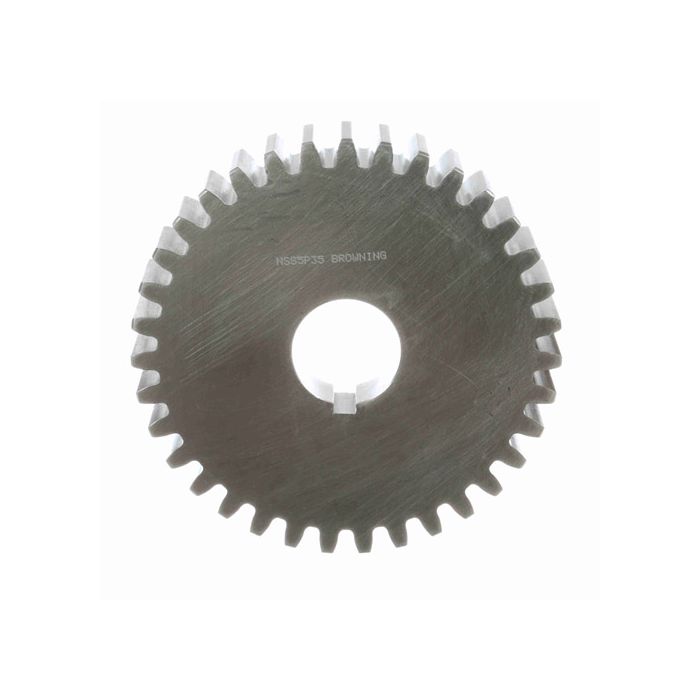

5 DP Spur Gear 14-1/2 Degree Pressure Angle Split Taper (P1)
| Part Number | NSS5P35 |
|---|---|
| Weight | 14.760000 |
| Manufacturer | BROWNING |
| UM | EA |
| UPC | 662289126071 |
| Face Width (inch) | 1.750 |
| Bore (inch) | 1/2 - 1-3/4 |
| Bore Type | Split Taper (P1) |
| Material | Steel |
| Number of Teeth | 35 |
| OD (inch) | 7.400 |
| Pitch | 5 |
| Pitch Diameter | 7.000 |
| Pressure Angle | 14-1/2 |
| Type | Spur |
| Product Description | 5 DP Spur Gear 14-1/2 Degree Pressure Angle Split Taper (P1) |
