NSS8F20X1
Call for Pricing
Available For Order
Sign in or Create an Account to view current inventory
Part Number
NSS8F20X1
Manufacturer Part Number
1215912
Manufacturer
BROWNING

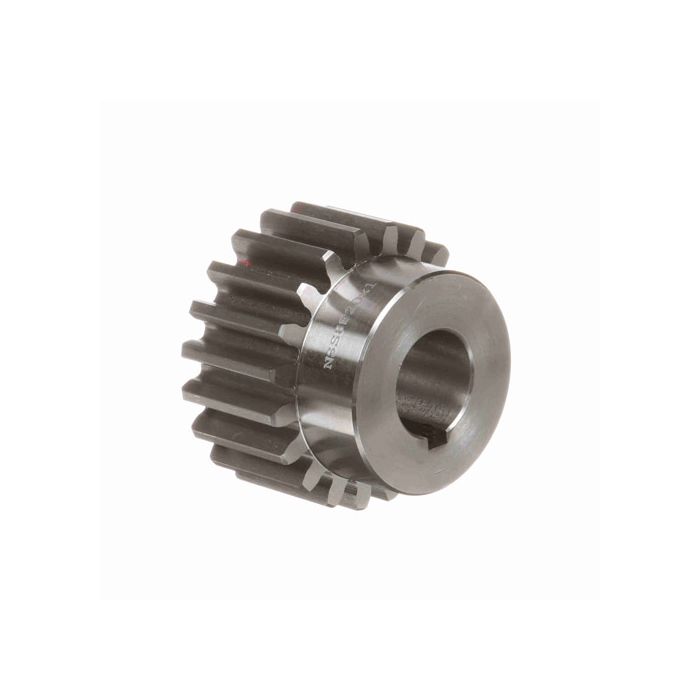

8 DP Spur Gear 14-1/2 Degree Pressure Angle Finished Bore
| Part Number | NSS8F20X1 |
|---|---|
| Weight | 2.020000 |
| Manufacturer | BROWNING |
| UM | EA |
| UPC | 662289247639 |
| Face Width (inch) | 1.250 |
| Bore (inch) | 1 |
| Bore Type | Fixed Bore |
| Material | Steel |
| Number of Teeth | 20 |
| OD (inch) | 2.750 |
| Pitch | 8 |
| Pitch Diameter | 2.500 |
| Pressure Angle | 14-1/2 |
| Type | Spur |
| Product Description | 8 DP Spur Gear 14-1/2 Degree Pressure Angle Finished Bore |
