NSS8P36
Call for Pricing
Available For Order
Sign in or Create an Account to view current inventory
Part Number
NSS8P36
Manufacturer Part Number
1214139
Manufacturer
BROWNING

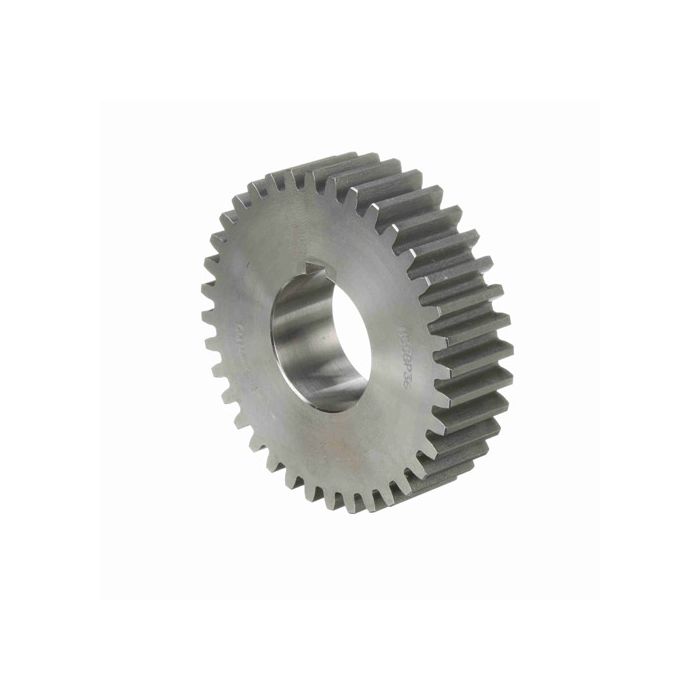

8 DP Spur Gear 14-1/2 Degree Pressure Angle Split Taper (P1)
| Part Number | NSS8P36 |
|---|---|
| Weight | 4.500000 |
| Manufacturer | BROWNING |
| UM | EA |
| UPC | 662289205592 |
| Face Width (inch) | 1.250 |
| Bore (inch) | 1/2 - 1-3/4 |
| Bore Type | Split Taper (P1) |
| Material | Steel |
| Number of Teeth | 36 |
| OD (inch) | 4.750 |
| Pitch | 8 |
| Pitch Diameter | 4.500 |
| Pressure Angle | 14-1/2 |
| Type | Spur |
| Product Description | 8 DP Spur Gear 14-1/2 Degree Pressure Angle Split Taper (P1) |
